High Speed Free Spin Test Machine
High Speed Free Spin Test Machine

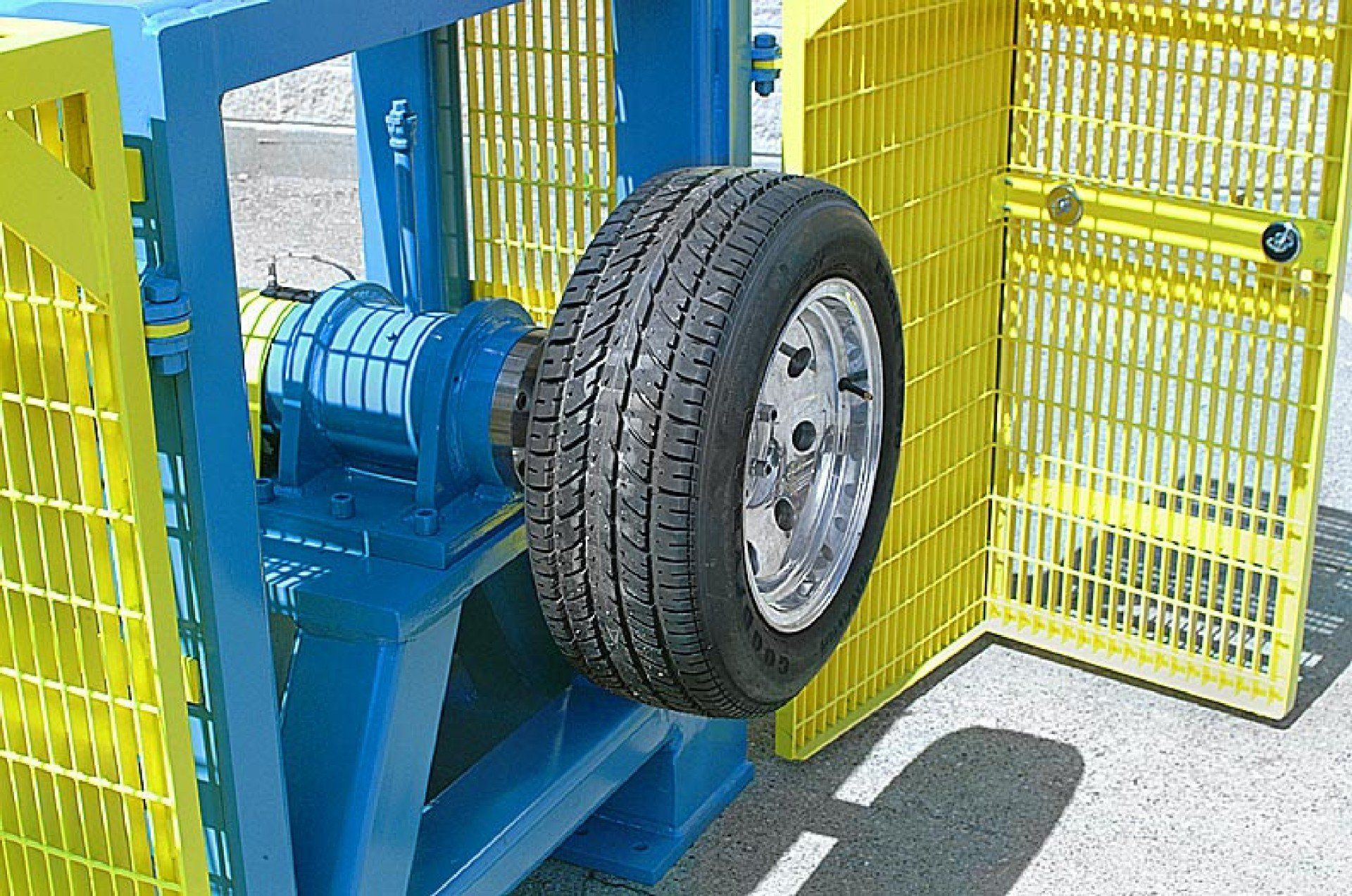

The Standards Testing Laboratories’ High-Speed Free Spin Test Machine is designed to test any application that requires spinning the tire/wheel assembly at very high speeds with no load. These include, but are not limited to, testing run-flat assemblies, tire pressure monitoring systems, valve stem stability, and wheel weight retention. This machine can be designed to any customer specification.
Features:
- PLC or PC (Allen Bradley / National Instruments) Control system
- Operator interface panel (touch screen) for machine control

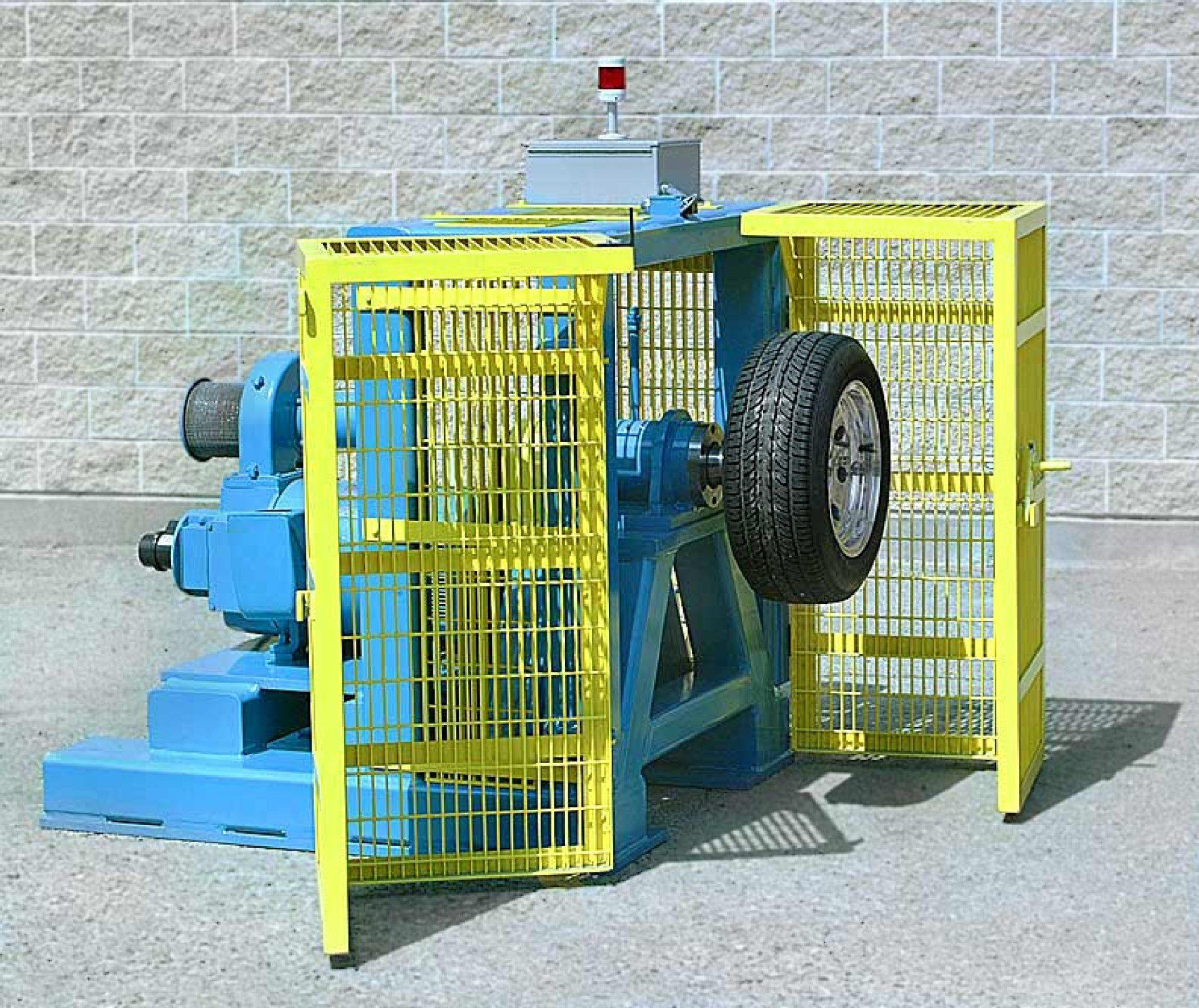

- Heavy-duty steel guards for enhanced safety
Capabilities:
- Programmable test sequences with acceleration and deceleration specified
- Can accelerate from 0 to 3500 rpm in less than 8 seconds
- Can decelerate from 3500 to 0 rpm in less than 8 seconds
Specifications: (standard machine)
- Maximum RPM: 3500 RPM
- Maximum tire O.D.: 42 inches
- Maximum tire width: 16 inches
- Various wheel offsets
- Tire centrifugal growth measurement system

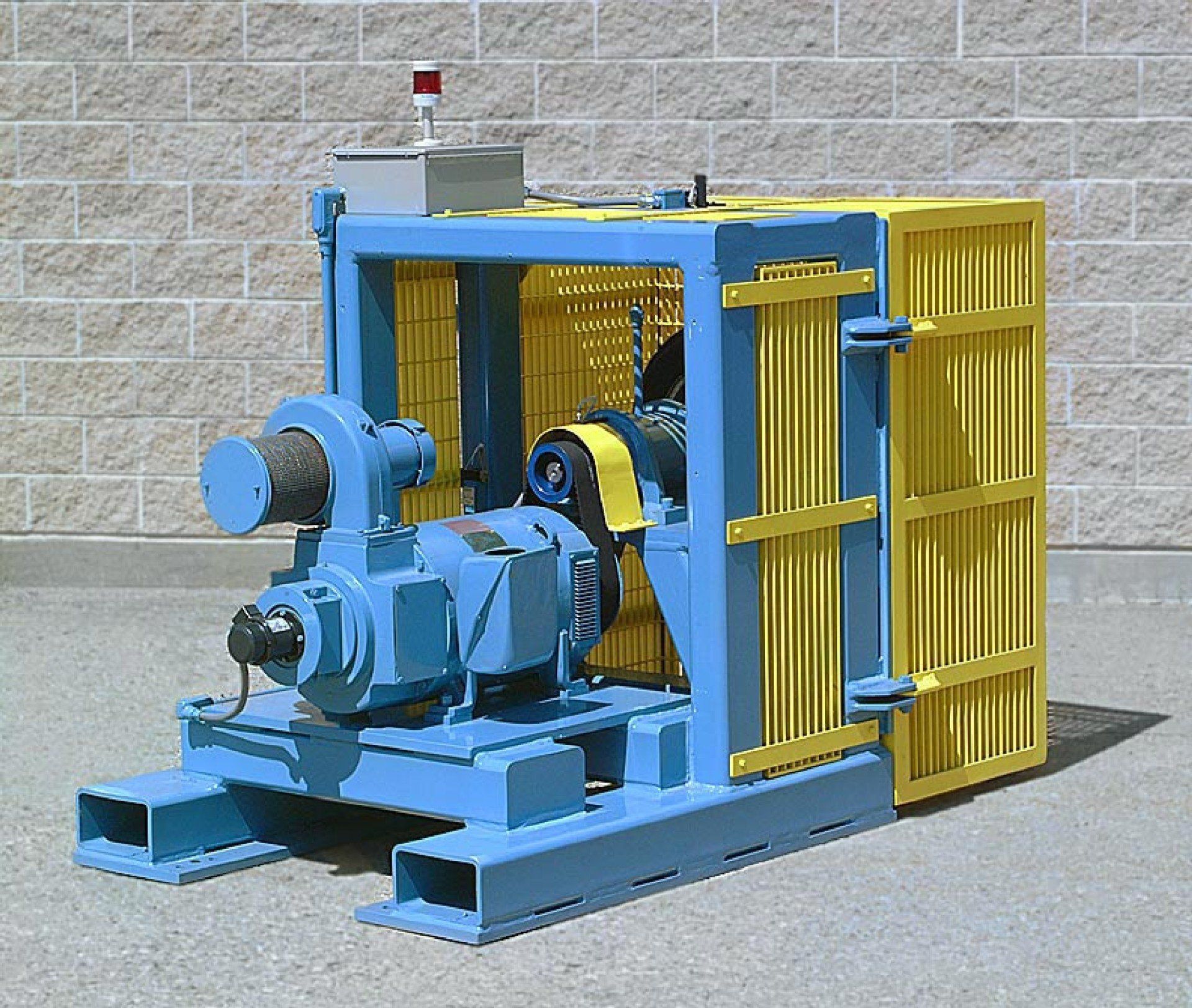

- Belt driven or direct drive
