Rolling Resistance Tire Test Machine
Rolling Resistance Tire Test Machine

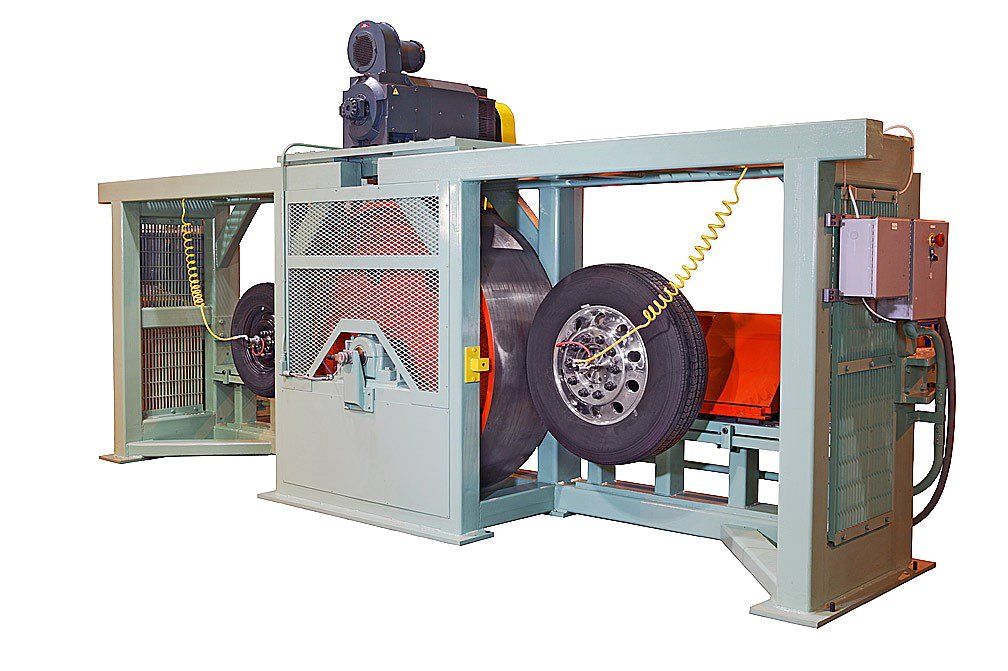

Standards Testing Laboratories’ Rolling Resistance Tire Test Machine has proven to be one of the most accurate rolling resistance testing systems in the field. Designed to customer specifications and with multiple high-quality test measurement systems, STL’s Rolling Resistance Tire Test Machine is sure to exceed any repeatability requirements defined by any specification.
Features:
- Hydraulic or electro-mechanical loading with self-contained units
- Closed-loop control

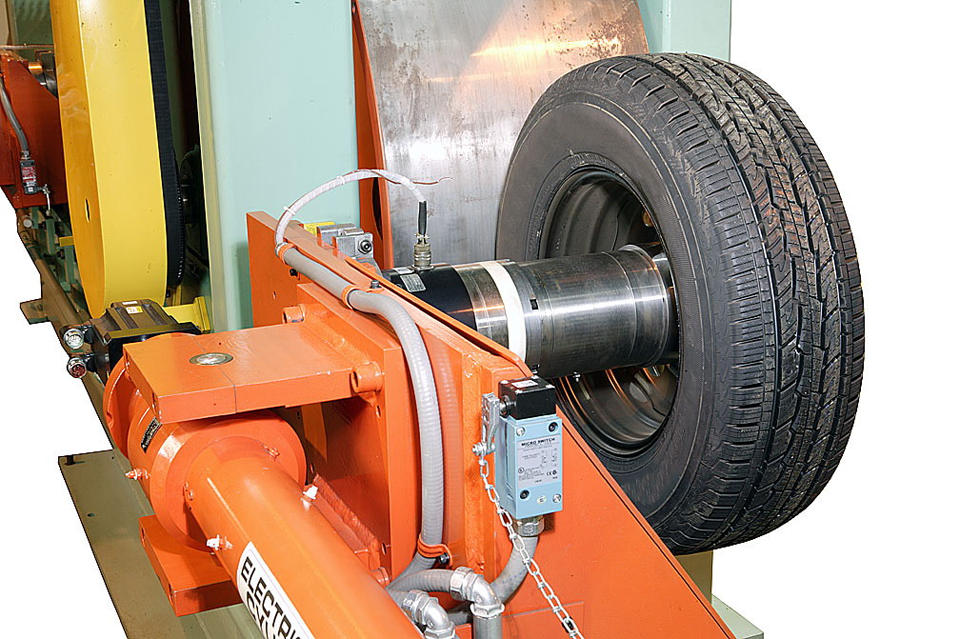

- Cantilevered wheel/tire mounting for easy access
- PLC or PC (Allen Bradley / National Instruments) Control system
Capabilities:
- Air pressure control from 0 psi to 200 psi
- Remote inflate/deflate for improved safety
- Traceable calibration standards for load, speed, and air pressure
Specifications: (standard machine)

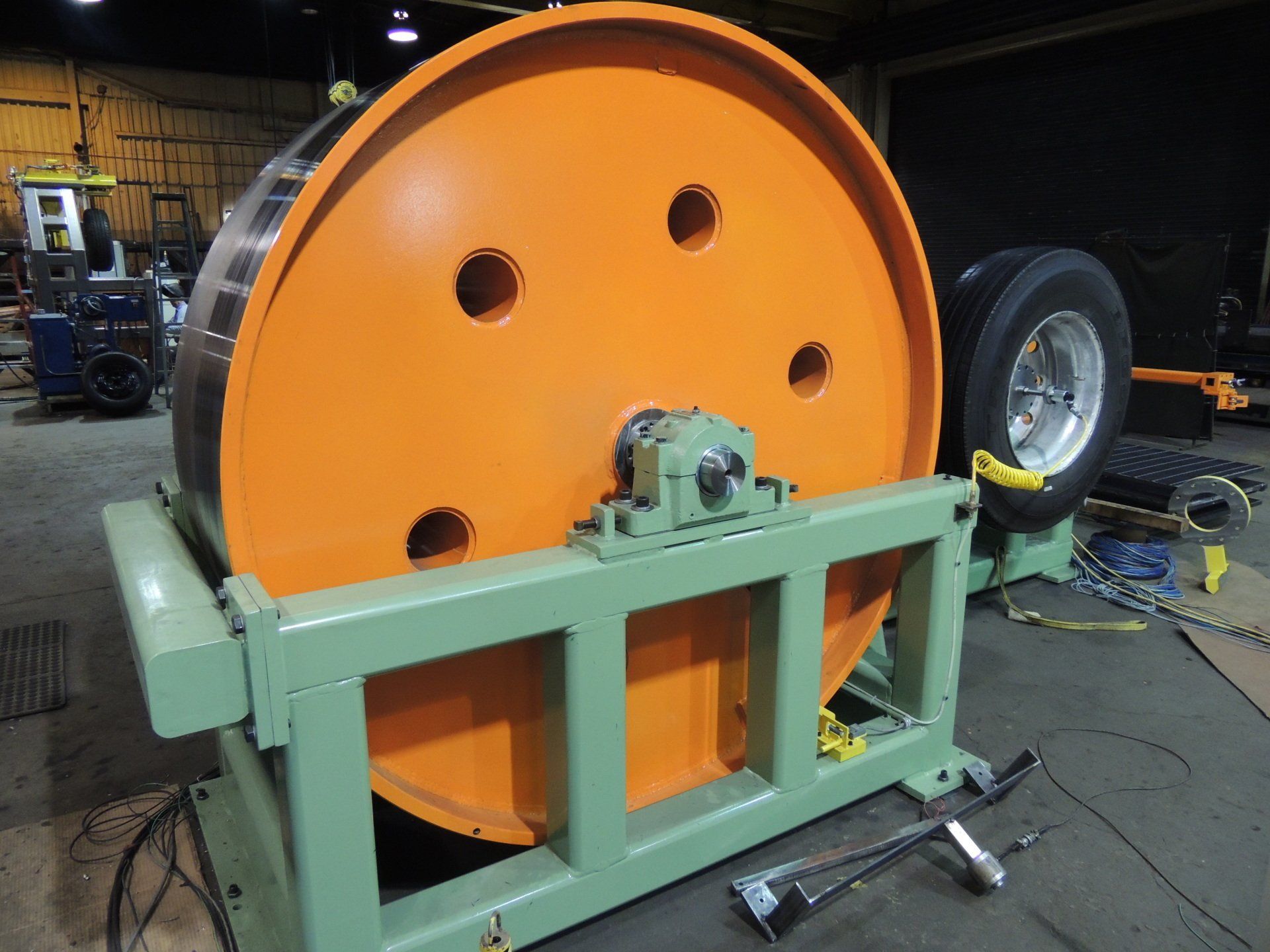

- Roadwheel diameter: 67.227 to 78.7 inch (1.7 to 2 meter)
- Roadwheel width: 18 to 48 inches (457 to 1219 mm)
- Roadwheel speeds: up to 155 mph ( 250 km/h)
- Roadwheel loads: up to 22,000 lbs (9,979 Kg)
- Tire/wheel assembly hoist - for easy mounting and dismounting
- Master computer options for data acquisition
- Slip and camber adjustments up to +/- 6 degrees
- Single or double station configuration
