Tire Footprint / Load Deflection Machine
Tire Footprint / Load Deflection Machine

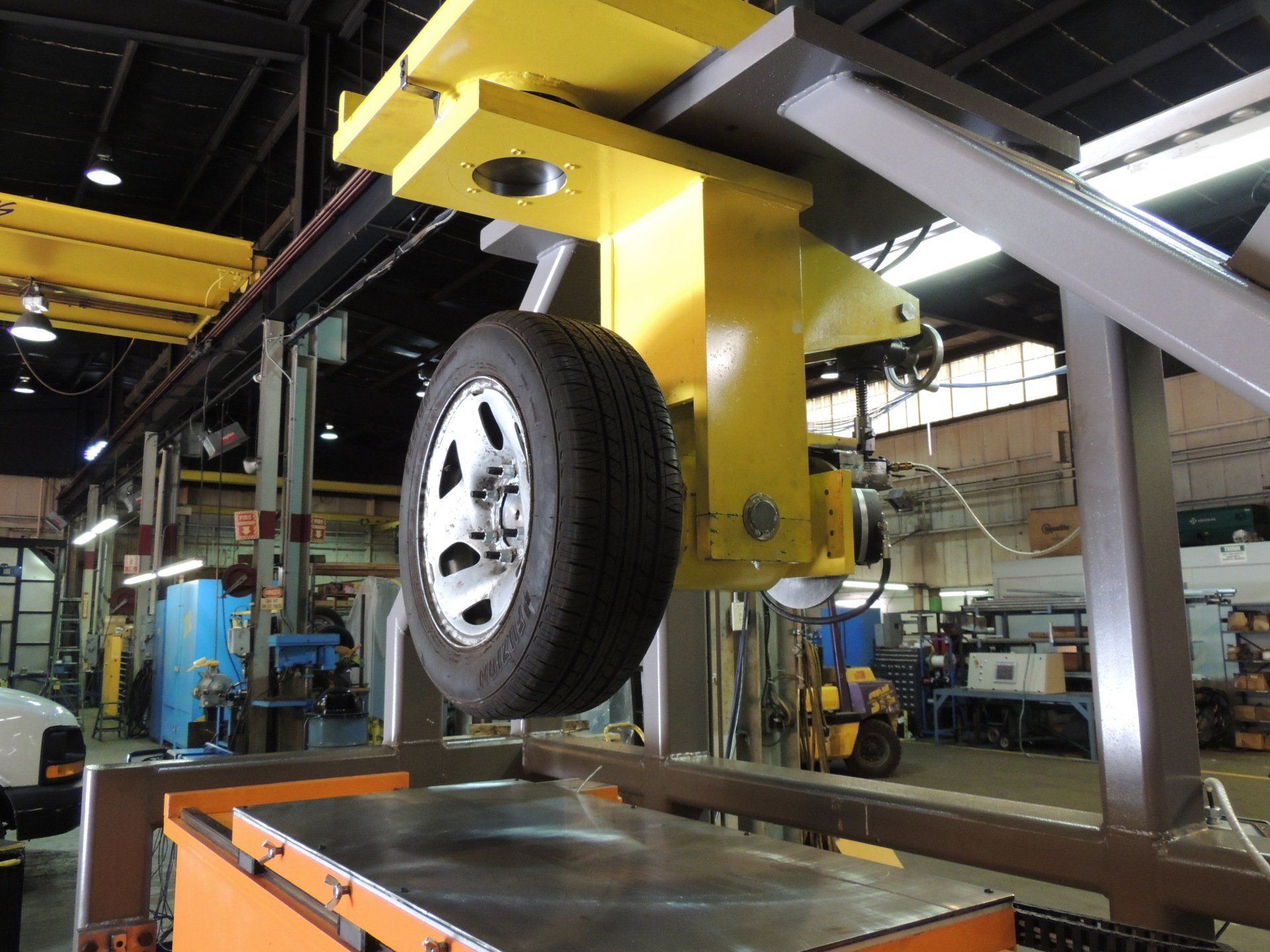

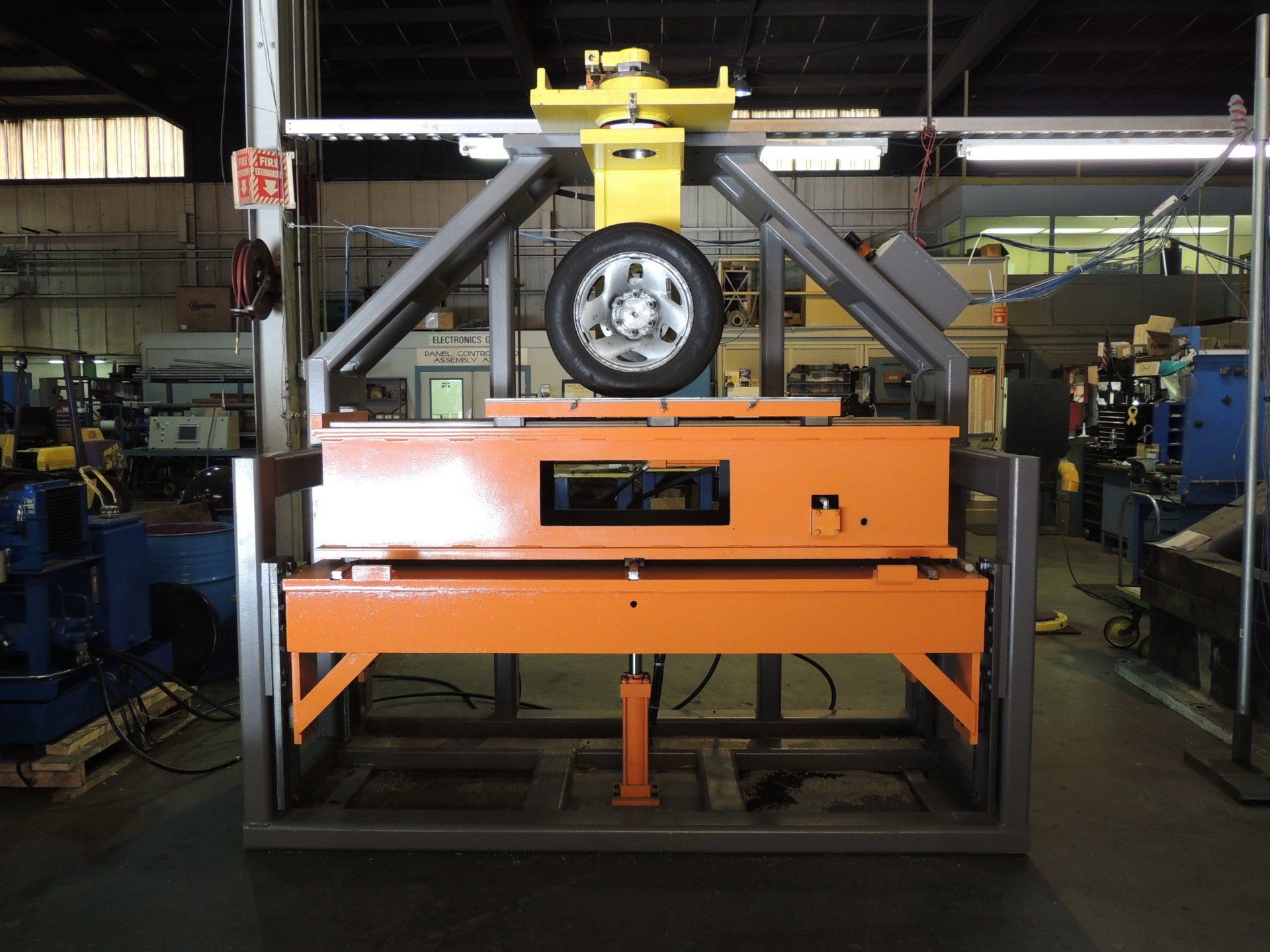

Standards Testing Laboratories’ Tire Footprint machine is a state of the art machine that will help any R&D team achieve the necessary results. This machine is designed to permit photography or video through a glass or Plexiglas plate, including LED lighting, while having motion in the radial, lateral, longitudinal, and torsional direction. With many upgrades and capabilities, this machine can be designed and manufactured to meet customer specifications.
Features:
- Hydraulic loading system with self-contained units
- PLC or PC (Allen Bradley / National Instruments) Control system
- Glass / Plexiglas plate for photo and video; including LED lighting
- Camber mechanism located in spindle
Capabilities:
- Lateral loading capability
- Longitudinal loading through the movement of the table
- Torsional loading with slip angle
- Selectable data recording rate
- Panel view displays test parameters while data is stored on a master computer for reporting
